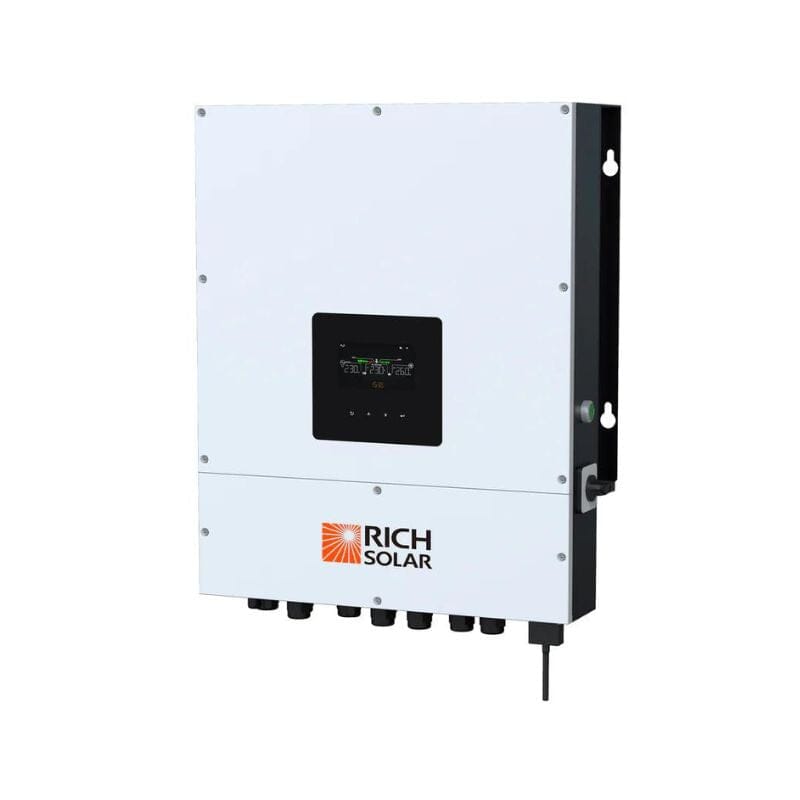

Rich Solar NOVA 8K PV Inverter
Features
- IP65 waterproof and dustproof makes the inverter available for various working conditions.
- Configurable color with the built-in RGB LED bar
- Built-in Wi-Fi for mobile monitoring (APP is required)
- Built-in alternative port for generator and emergent load.
- Optional external CT sensor to guarantee 100% self-consumption.
- Programmable supply priority for PV, Battery or Grid.
- Built-in communication port for BMS (RS485).
- User-adjustable charging current and voltage.
- Parallel operation up to 6 units
Specifications
- Maximum PV Input Power: 12000W
- Rated Output Power: 6000VA/6000W
- PARALLEL CAPABILITY: Yes, 6 units
INPUT
- Maximum DC Voltage: 600VDC
- Start-up Voltage/initial Feeding Voltage: 120VDC/160VDC
- MPPT Voltage Range: 120VDC-550VDC
- Frequency Range: 50Hz / 60Hz (Auto detection)
OUTPUT
- Output Voltage Waveform: Pure Sine Wave
- Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
- Output Voltage Range: 105.5-132VAC per phase
- Nominal Output Current: 25A per phase
BATTERY
- Battery Voltage: 40-62 VDC
- Maximum Charging Current: 120A
- Efficient(DC to AC): 91%
OPERATING ENVIRONMENT
- Operating Temperature Range: -25°C to 60°C(>45°C derating)
PHYSICAL
- Dimension (mm): 215.5 x 515 x 700 (with extension box)
- Net Weight : 41kg/90.4lb
