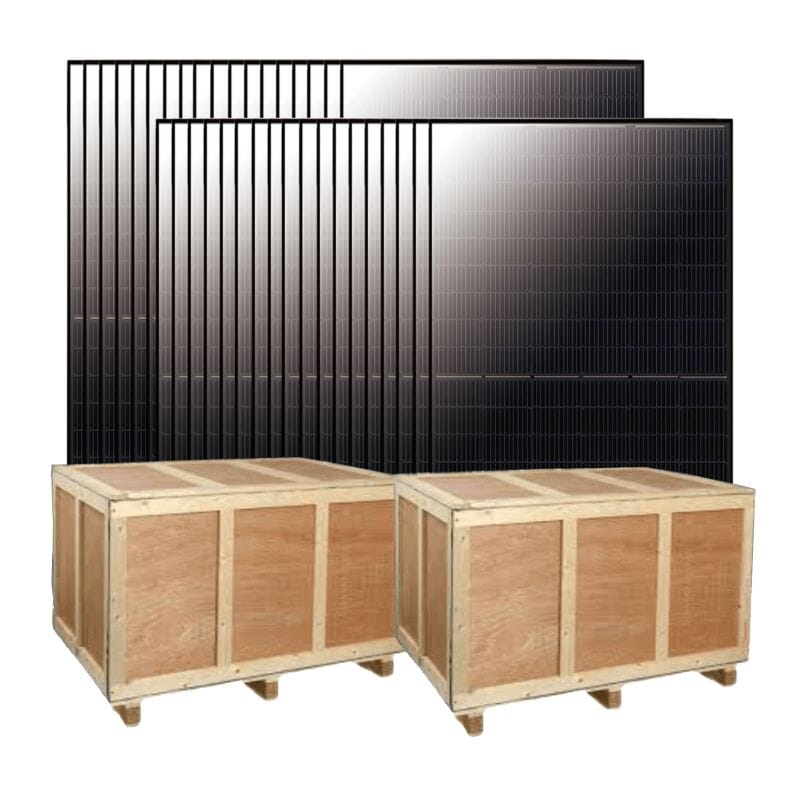

Phonosolar 400W 108-cell Black Backsheet Black 30MM Frame Module

Phonosolar 400W 108-cell Black Backsheet Black 30MM Frame Module (SKU Part Number PS400M6H-18/VHB)

TWINPLUS MODULE SERIES – HIGH EFFICIENCY MONO-PERC

OUTSTANDING PRODUCT PERFORMANCE

• Competitive high-temperature performance with ameliorated temperature coefficient
• Minimized power loss in cell connection
• Better performance under shading effect
• Decreased nominal operating cell temperature to 45 ± 2° C
• Higher power generation with multi-busbar and half-cut technology

TRUSTWORTHY QUALITY AND RELIABILITY

• Guaranteed 0-+5W positive tolerance secures reliable power output
• 5400Pa maximum snow load, 2400Pa maximum wind load
• Optimized electrical design lowers hot spot risk and operating current

PID RESISTANT

• Industry-leading cell processing technology and electrical design ensure solid PID resistance

Phonosolar 400W 108-cell Black Mechanical Characteristics

• Cell Type Monocrystalline 182mm x 91mm
• Dimension (L× W × H)
  Length: 1722mm (67.80 inch)
  Width: 1134mm (44.65 inch)
  Height: 30mm (1.18 inch)
• Weight: 22.0kg (45.80 lbs)
• Front Glass: 3.2mm Toughened Glass
• Frame: Anodized Aluminium Alloy
• Cable (Including Connector): 4mm² (IEC), (+):450mm,(-):250mm or Customized Length
• Junction Box: IP 68 Rated

Temperature Ratings

• Voltage Temperature Coefficient: -0.28%/°C
• Current Temperature Coefficient: +0.05%/°C
• Power Temperature Coefficient: -0.35%/°C
• Tolerance: 0~+5w
• NOCT 45±2°C
